    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

    Ask Lasest Price
    Supply Ability : 100 Set/Sets per Month
    Price : $11,500.00/sets 1-4 sets
    • Product Details
    • Company Profile

    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    Product Description
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    ■ Servo Motor Paper Box Machine
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    ■ Parameters
    Model
    XP-DB -1200
    Paper Material
    180—600gsm cardboard / corrugated paper
    Box type
    hamburger boxes, square boxes, food boxes, fast food boxes, French fries boxes,
    Max. Liner speed
    80—180pcs/min (different paper box shapes, he speed is different )
    Paper thickness
    Max 1.5mm
    Carton size
    Length: 100-450mm
    width:100-580mm
    height: 15-200m
    Glue Material
    Water-base cold glue
    Paper size
    Max: 650mm(W)*490mm(L)
    Max box size
    450mm*400mm
    Min box size
    50mm*30mm
    Air source
    6kgs/cm²*200L/min
    Dimension(mm)
    2950*1300*1300mm
    Voltage
    380V 50Hz / 220V 50Hz
    Total power
    4.5kw
    Machine weight
    2000kgs
    Details Images

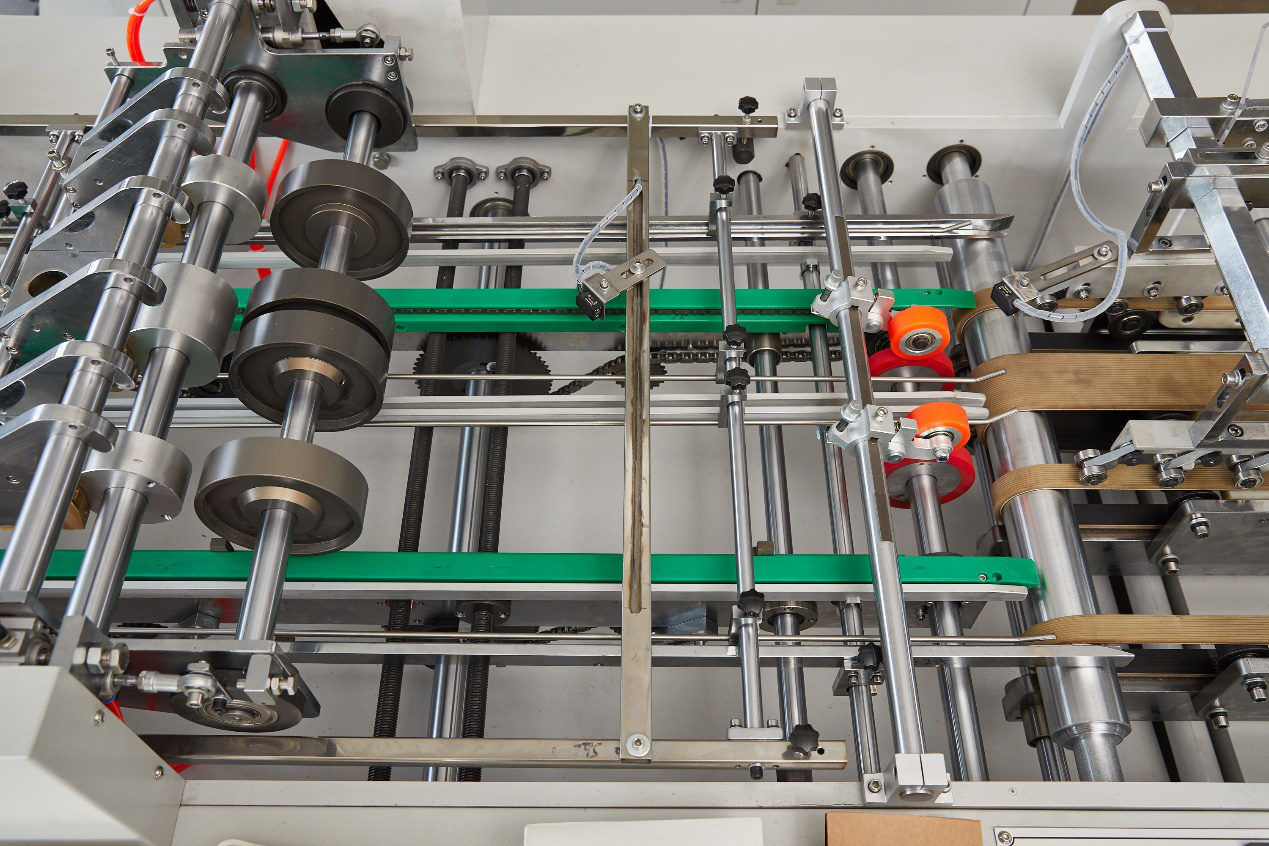

    ■ Details of The Machine
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    1 . Universal cage, adjustable according to the size of the mold, with the function of counting.
    2 . Photoelectric for paper feeding,
    more accurate, reduce paper waste
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    3 . Adjustable roll glue system, convenient glue point positioning, mold change.

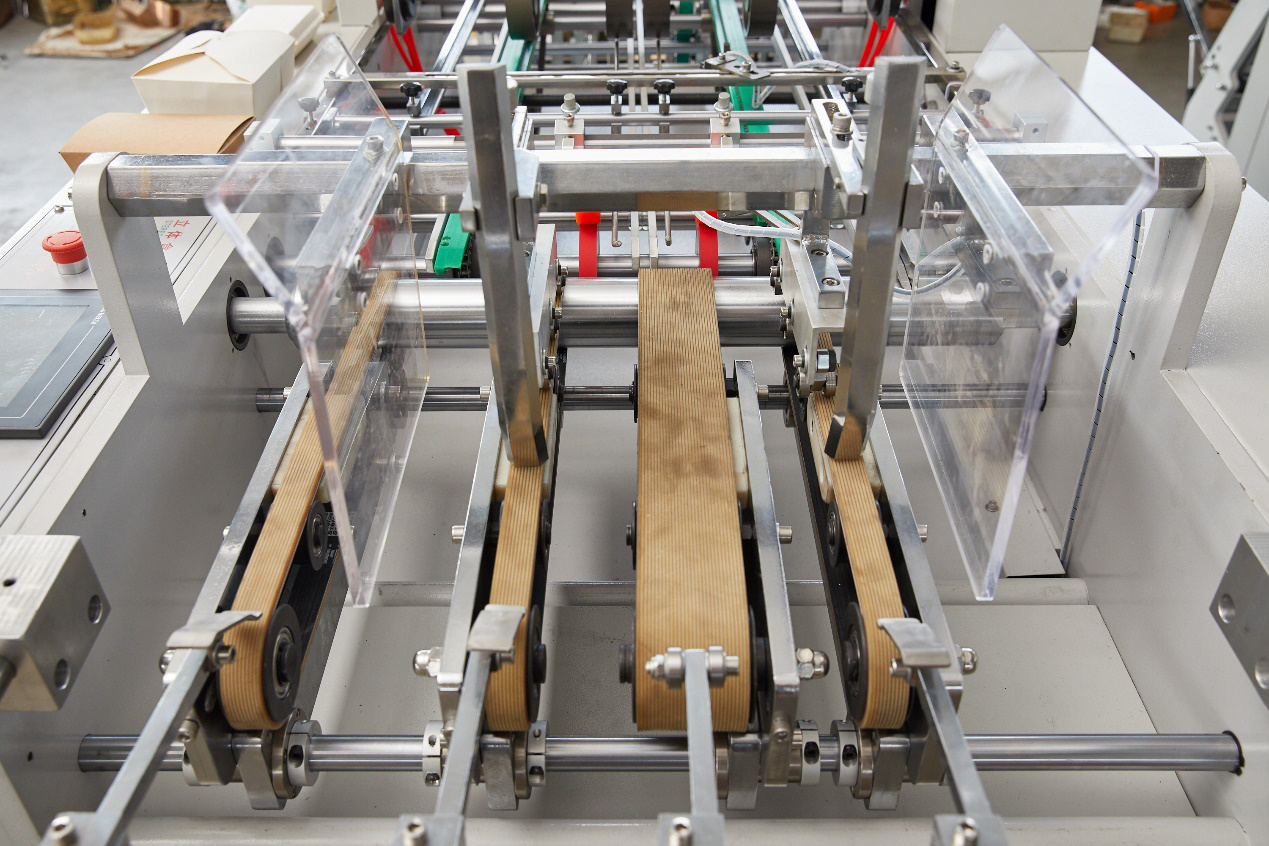

    4 . Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding.
    Continuously Variable Speeder to ensure feeding internal and stable transmission.
    Sensor according to each piece paper feeding,
    If two pieces paper come together, machine will alarm
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
    5. The machine is equipped with PLC control and Touch screen, It's easy and convenient to set and control the machine
    Product Application
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

    Open square carton
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

    Hamburger box
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

    packing box
    Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

    Square box with cover
