CE Certification Square Bottom Paper Bag Machine 9500kg 180 Pcs/Min

Product Description

This machine is used for rolls of primary color paper or printing rolls such as kraft paper, glossy paper, medical paper, etc. The paper bag process consists of roll discharge (hydraulic feeding, automatic correction, constant tension), puncture, middle (side) seam gluing, color code tracking, raw material into a cylinder, fixed-length pulling and breaking, bottom gluing, bottom folding , The bottom of the bag is formed and the finished bag is finished in one time This machine is easier to operate, more efficient, and more stable. It is an ideal equipment for producing various paper bags, bread bags, snack food bags, bread bags, dried fruit bags and other environmentally friendly paper bags.

Specification

CTUBE CUTTING LENGTH	260-533mm
HBAG BOTTOM WIDTH	60-160mm
PAPER THICKNESS	60-150g/m2
MECHNICAL SPEED	30-200pcs/min
BAG MAKING SPEED	30-180 pcs/min
PAPER ROLL WIDTH	MIN. 320 MAX 1300mm
PAPER BAG WIDTH	220-460mm
PAPER ROLL DIAM.	1300mm
MACHINE POWER	3phase 4line 380V,15 kw
MACHINE WEIGHT	9500kg
MACHINE DIMENSIONS	3000x1800mm

Using the TAIWAN WEIVIEW touch screen man-machine interface control system, operating at a glance.

ENGLAND TRIO BRAND motion controller through more

The use of ultrasonic simulation alignment the side, the reaction speed of the operation of a quick correction ,save time and save the waste of raw materials.

Roll paper tension adopt magnetic powder brake, it can use long time, tension control is uniform.

The automatic spray glue, the glue spray will not be interrupt when hign speed or low speed, convenient adjustment capacity, glue spray

High pressure pressure can save glue, easy and simple to use without cleaning, saving cleaning and saving glue.

The machine adopts high precision gear, long service life, to ensure high speed paper bag operation precision.

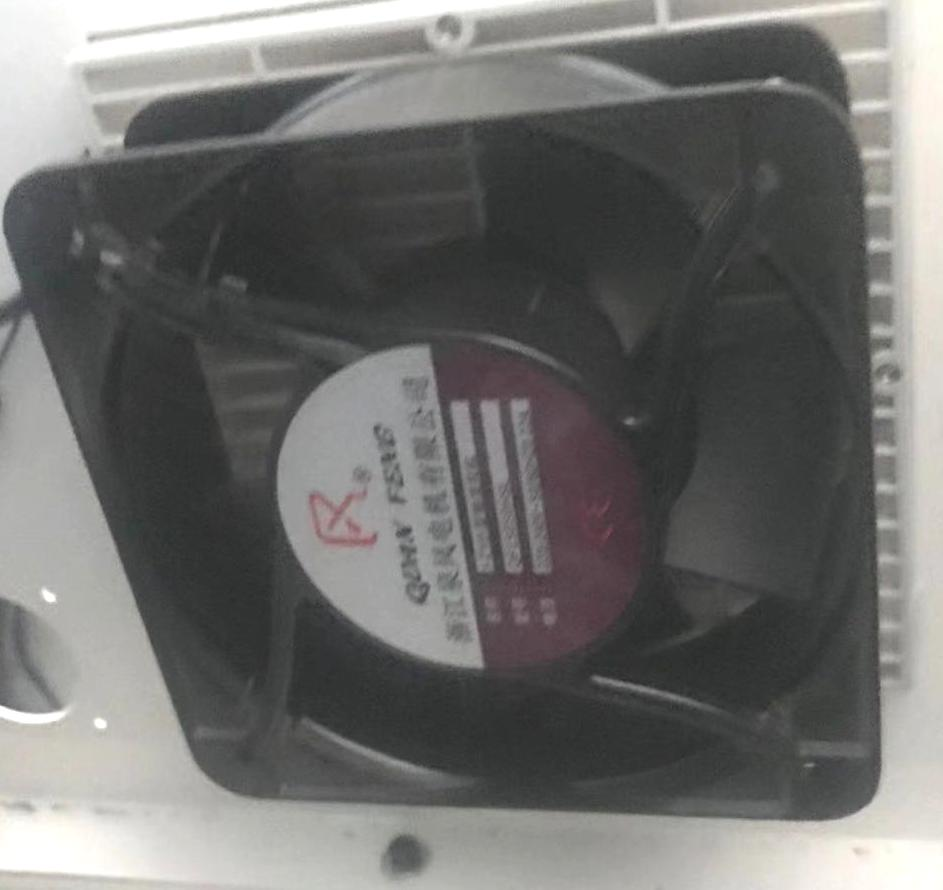

Electric appliance control box with two fan to make the inside air fresh and dry,Strong guarantee for high speed operation of the machine, Keep the electrical components in the control box at a constant temperature.

Whole machine casting frame 5CM wall plate

Packing & Delivery

Delivery time: 30 days after receiving deposit
Packing and marking:Standard packing or wooden case
